Stern (rear) cap for a 60mm Tube.

Description

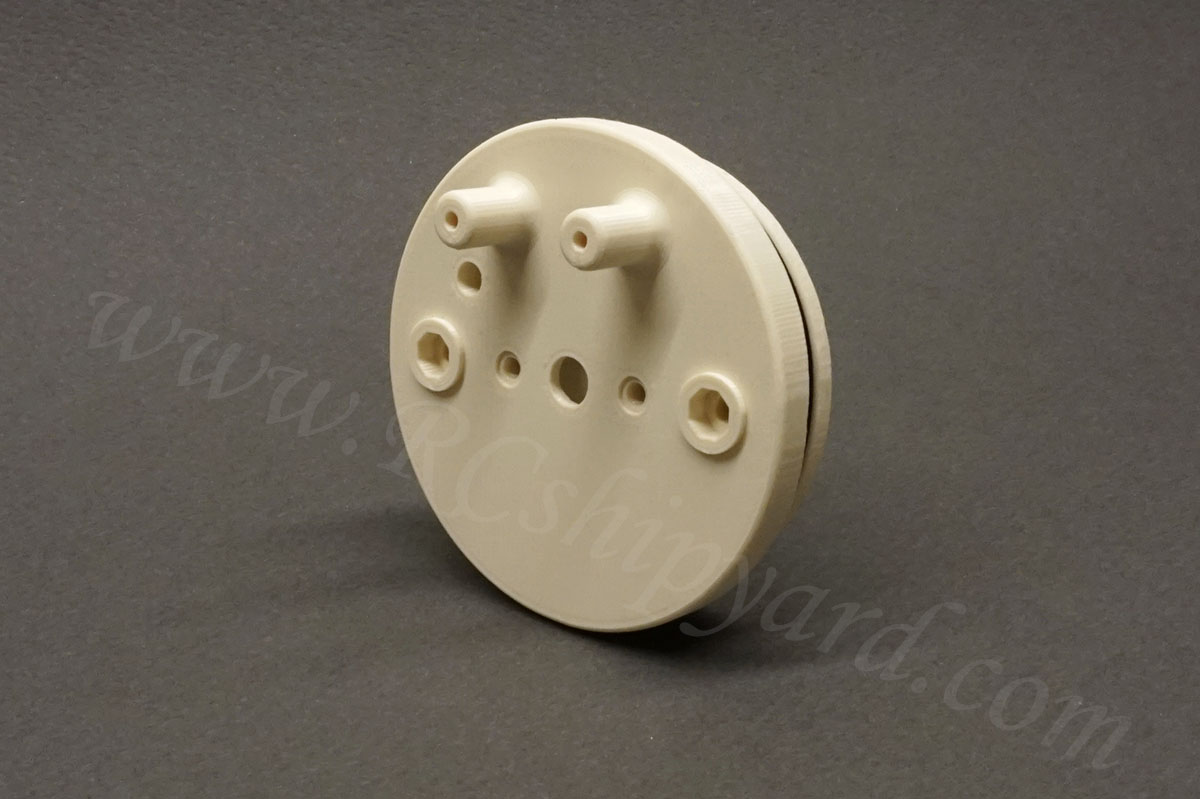

Stern (rear) cap for a 60mm/2.36inch O.D. Tube.

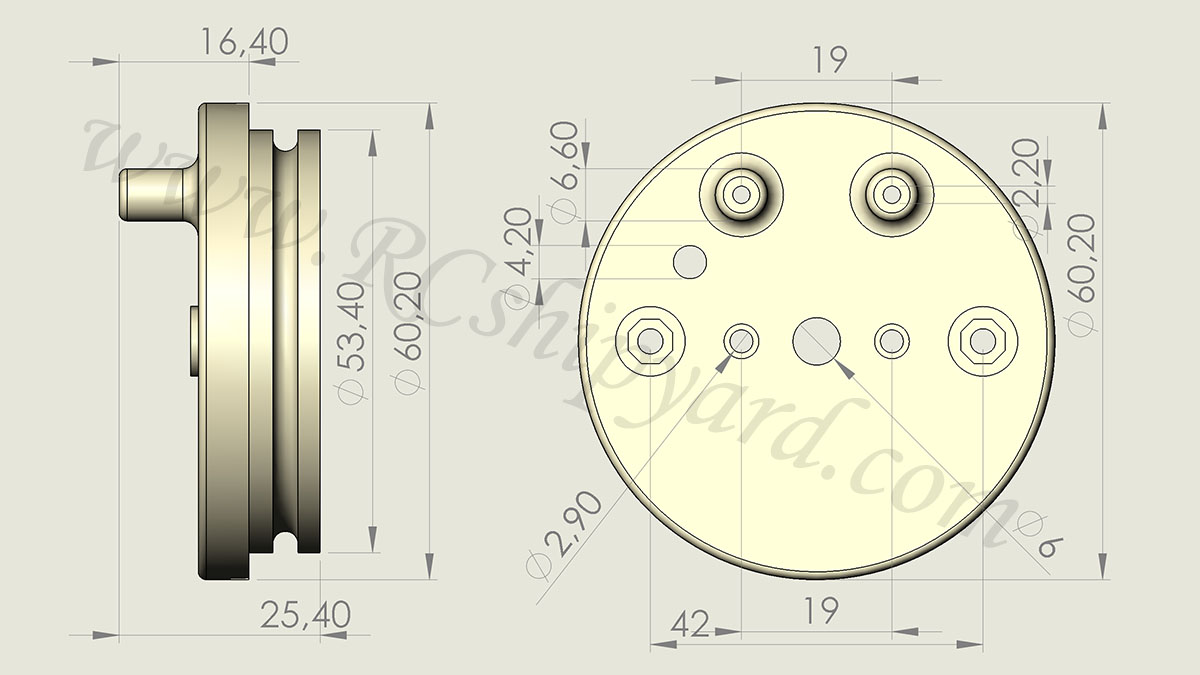

This is the aft (rear) cap for a 54mm inner diameter and 60mm outer diameter tube (2.125/2.36inches).

The stern cap includes two mounts for rubber bellows, water inlet hole (or for breather tube), motor (or gearbox) mount holes, and motor shafts seal for a 4mm shaft.

This includes:

• Plastic cap
• 1 oring
• 1 shaft seal (for motor with a 4mm shaft)
• 2 rubber bellows (pushrod seals)

If you want your mounting holes for the motor in a different size or spread. Please contact me first. If it will be possible to manufacture it without any additional costs.
