€439.90
WTC RTR with the Fitting (conversion) KIT for the Japanese Soryu Class Attack Submarine (Trumpeter number: 05911).
Version with operational Fairwater (tower mounted) dive planes.
Out of stock
Description

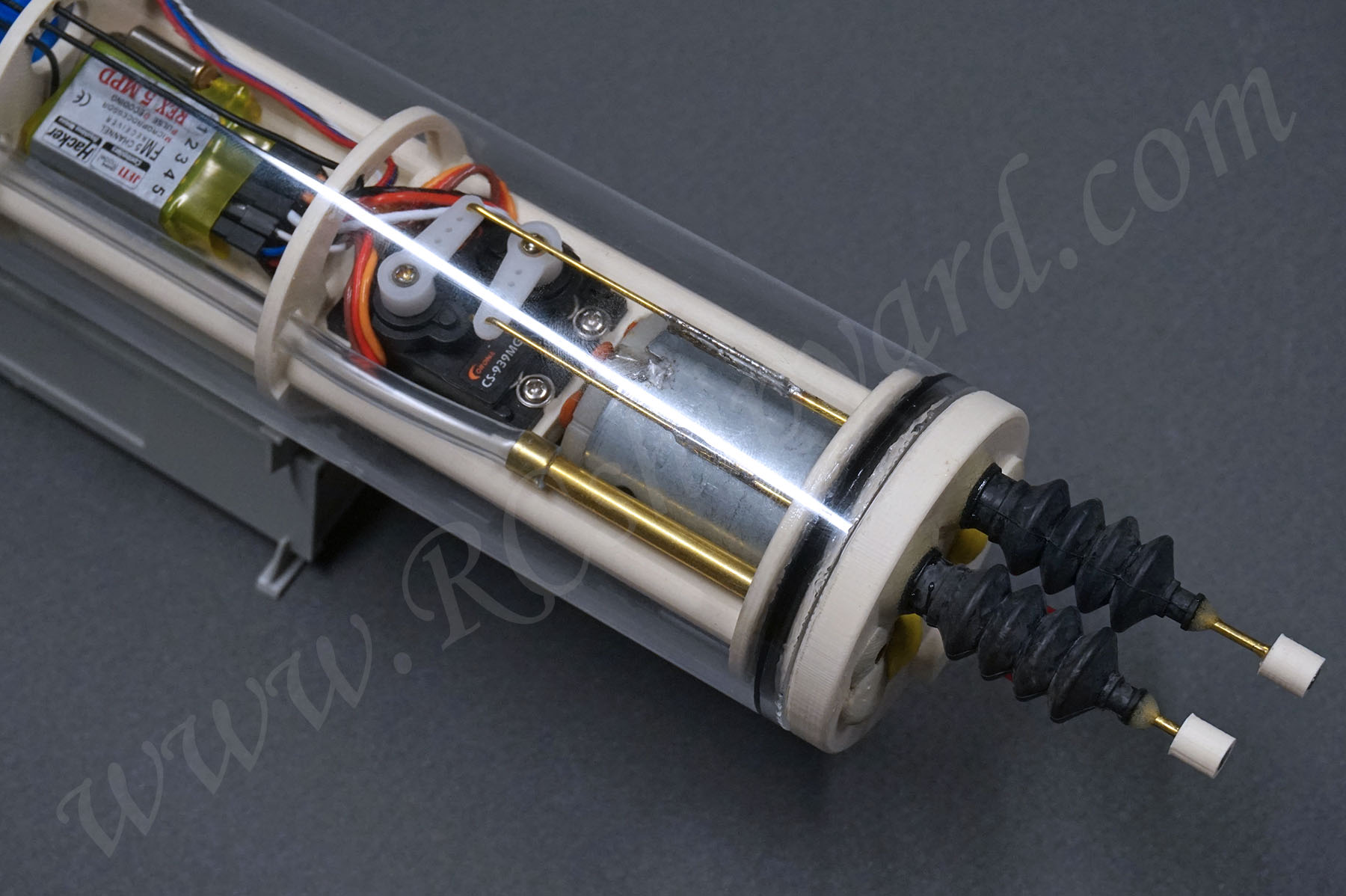

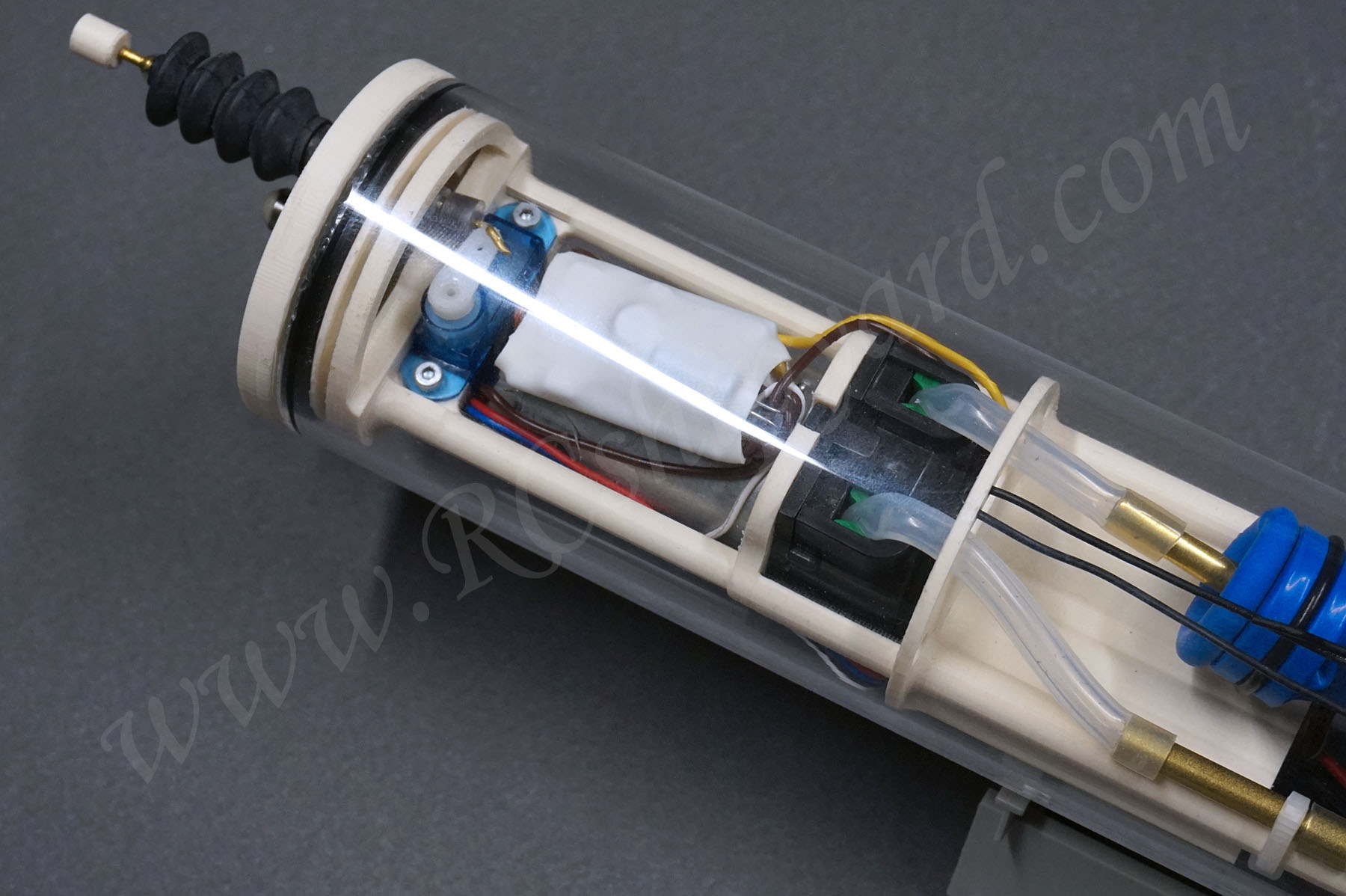

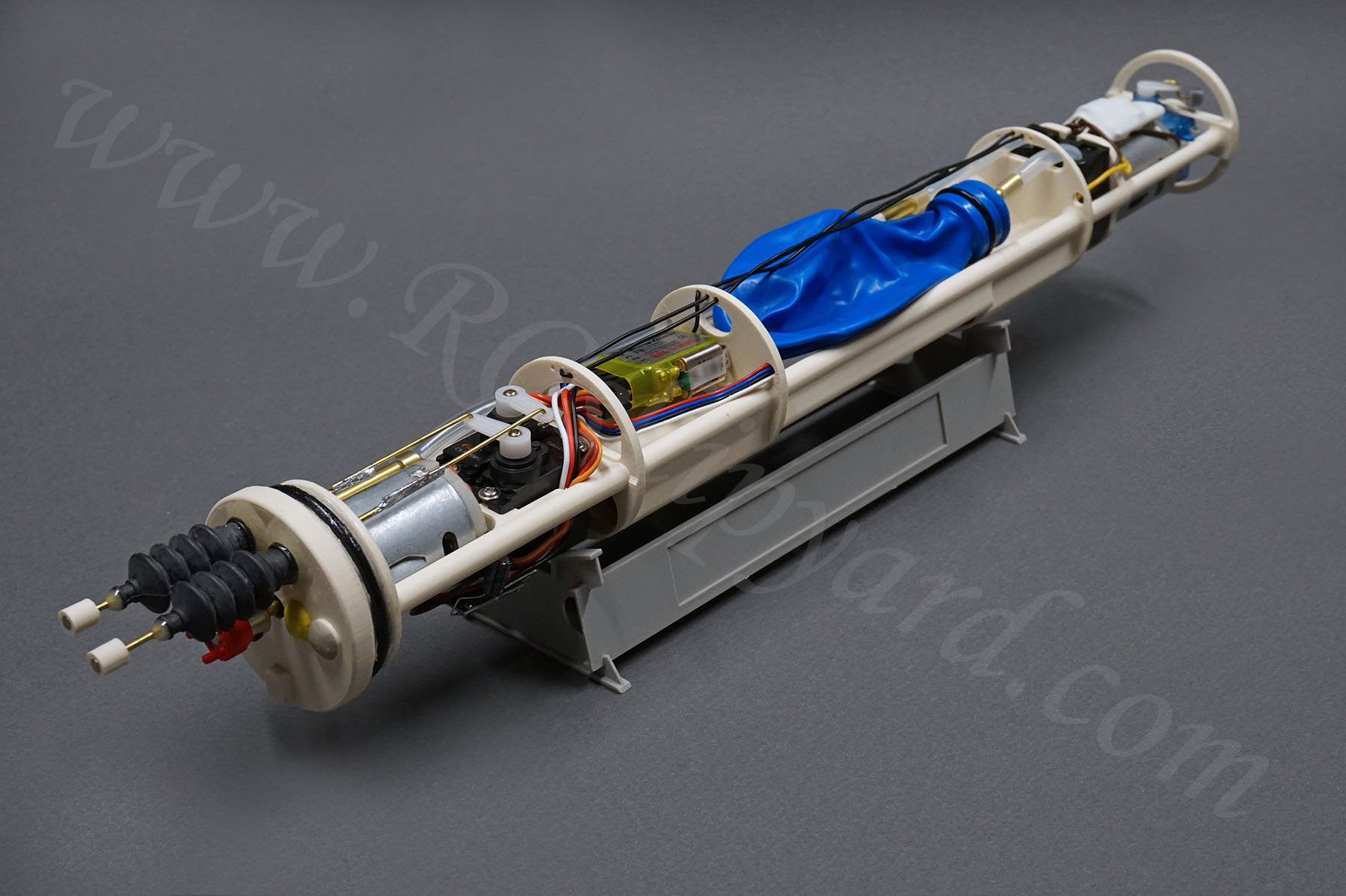

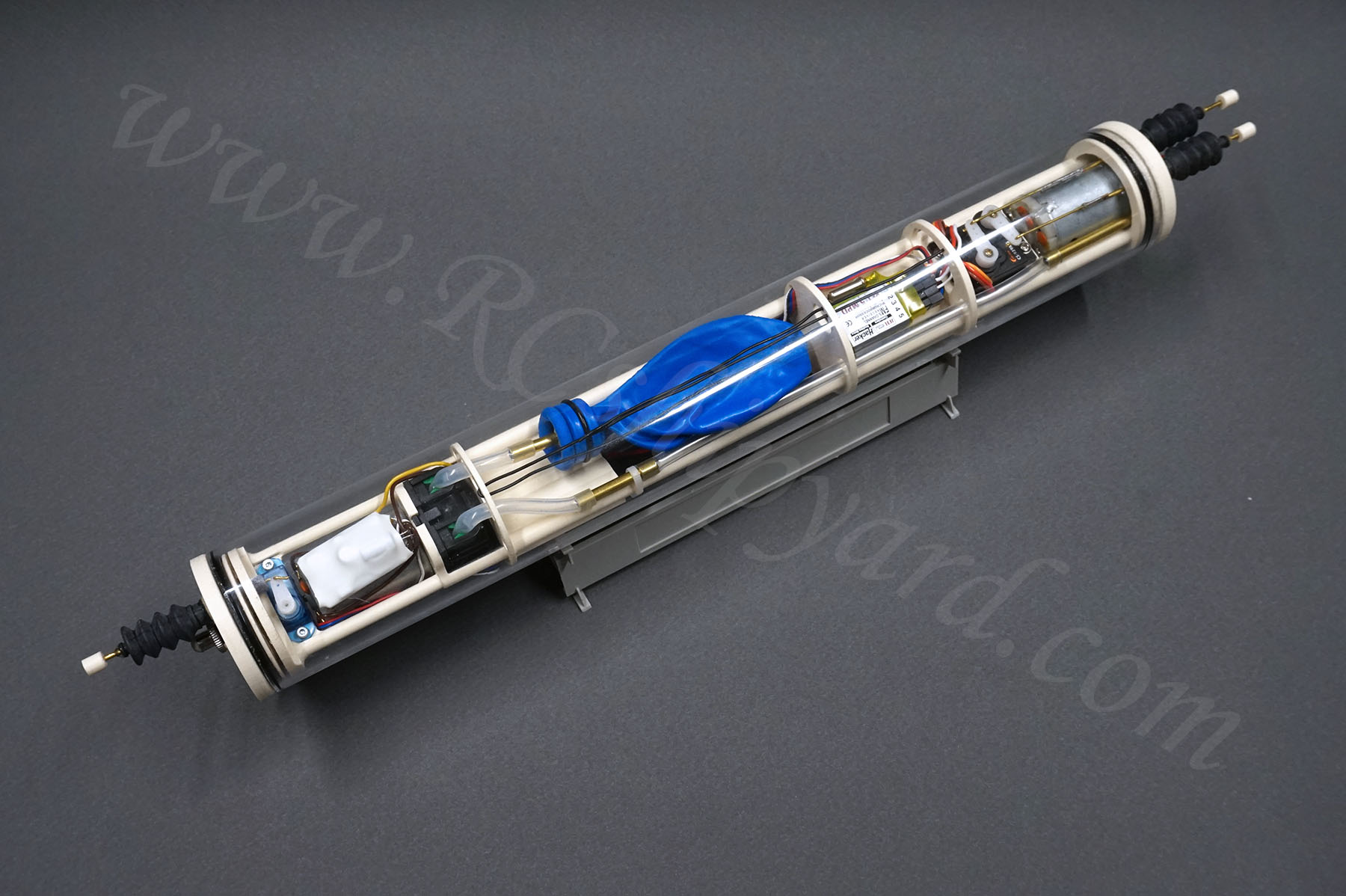

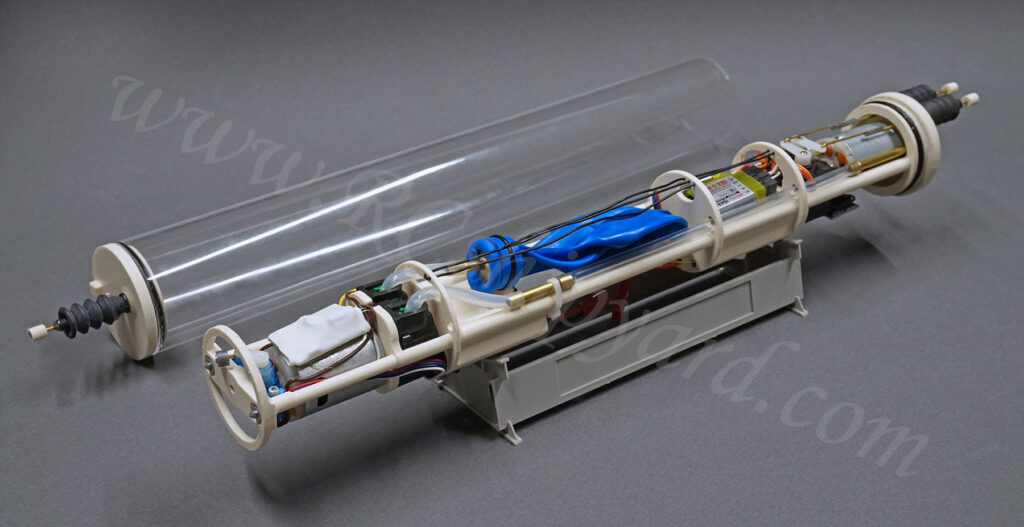

WTC RTR for Trumpeter “Japanese Soryu Class Attack Submarine” (Trumpeter number 05911).
– Fitting/conversion set INCLUDED
– Version with OPERATIONAL fairwater (tower mounted) planes.
Measurements:
Outer tube diameter: 50mm/1,96″
WTC external length (including cap ends and servo pushrods with magnetic couplers): 440
WTCÂ Length (from one end cap to another): 364mm
Polycarbonate tube length: 355mm
- Fitting SET (conversion KIT) for Trumpeter Soryu 1:144
- Pump
- Pump controller
- Drive motor
- ESC for drive motor
- Li-Ion battery pack (4 cells, 7.4V 1300mAh)
- 2 x High quality Corona or EMax servos (metal bearings, metal gears)
- 1 x Micro servo for the fairwater planes
- PDF Manual (English)
- All plastic parts for the water tight container assembly
- Ballast tank with “quick lock” connector for easy replacement.
- Necessary brass tubing
- Necessary silicon tubing
- Main drive seal
- 3 Pushrods seals
- Pushrods
- Magnetic connectors (2 pairs)
- Polycarbonate tube
- Bow (front) end cap
- Stern (rear) end cap
- End cap seals
- all necessary screws, nuts and threads
The included Conversion/fitting KIT allows for an easy connection of the WTC with the plastic model. It’s especially designed for the Trumpeter Soryu Class Attack Submarine model and most likely will not fit other models. The fitting kit also allows for a perfect alignment of the upper and lower hull.

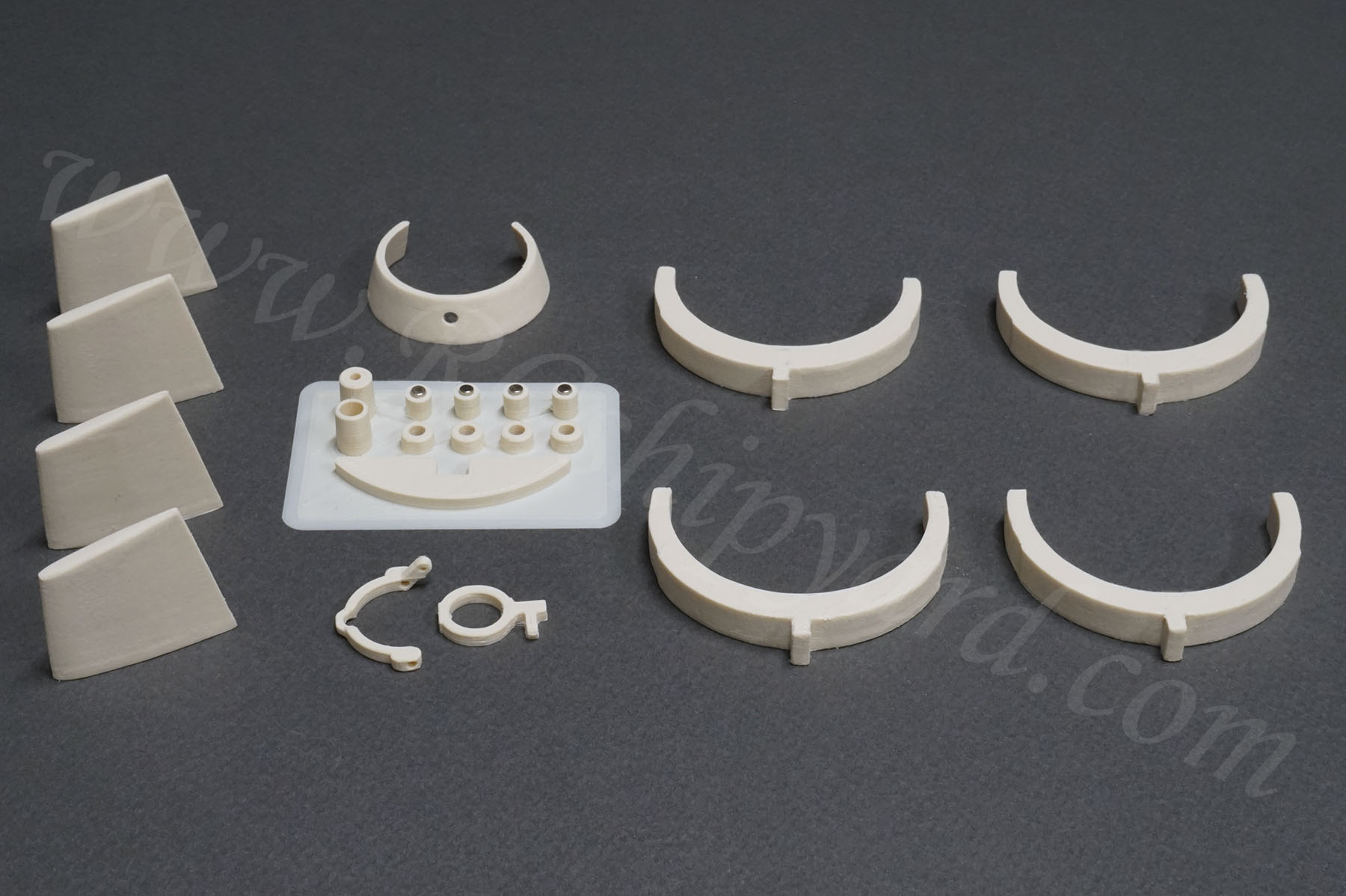

Fitting Set for Soryu Class Attack Submarine consists of :
- 4x ribs for easy mounting the WTC
- 4x rudders for replacing the fixed Trumpeter rudders
- 2x fairwater (tower placed) dive planes
- Stern mounting ring (necessary for X rudder system built)
- X-rudder mechanics
- All necessary brass elements for pushrods assembly
- 2x Magnetic shaft connectors (Pair joining the propeller shaft with motor shaft).
- Magnetic pushrod connectors
- Threaded inserts for connecting and locking the upper hull with the lower hull
- WTC stern end stop

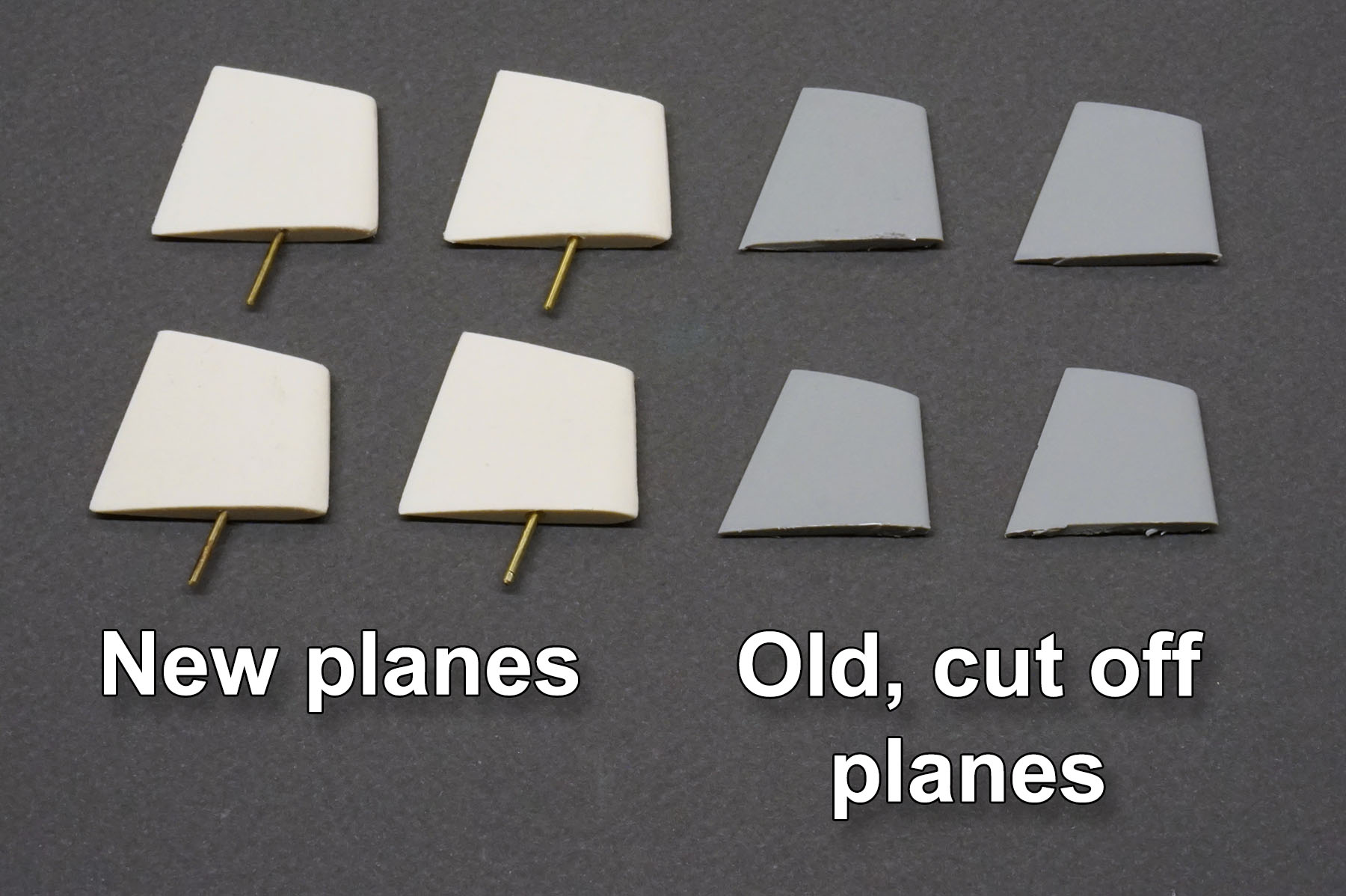

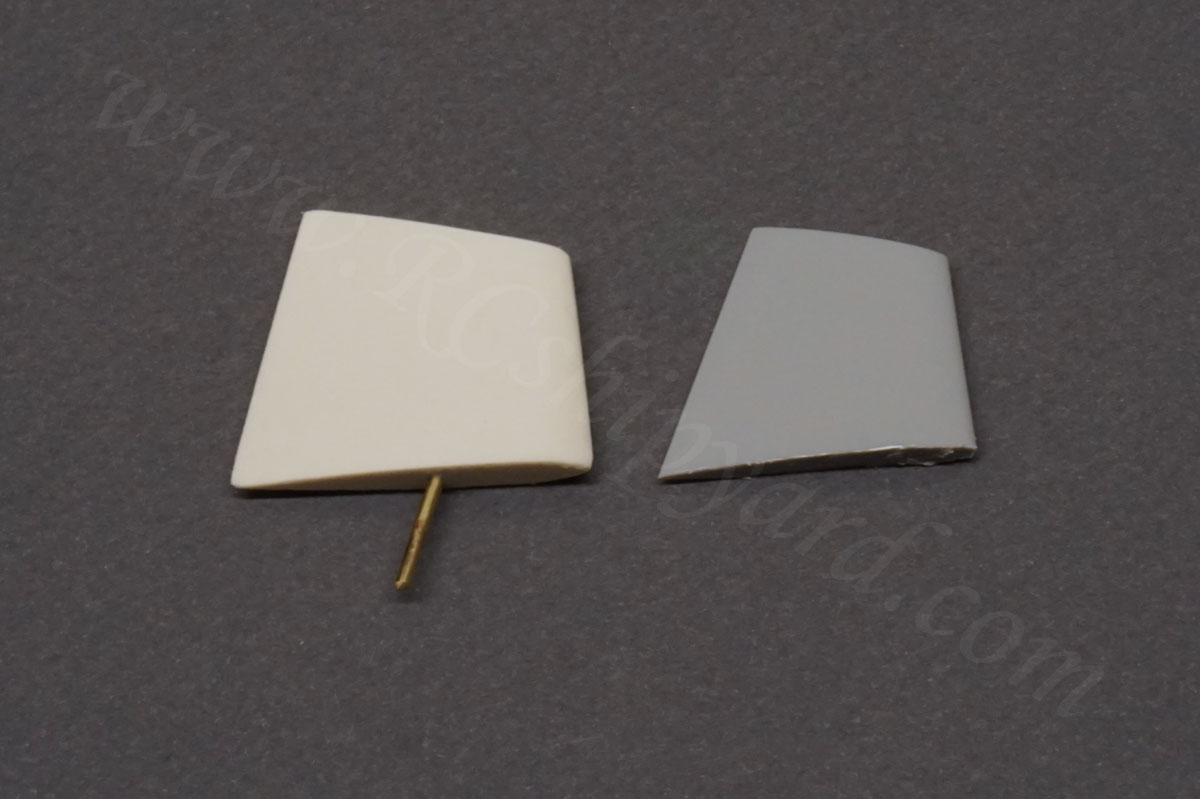

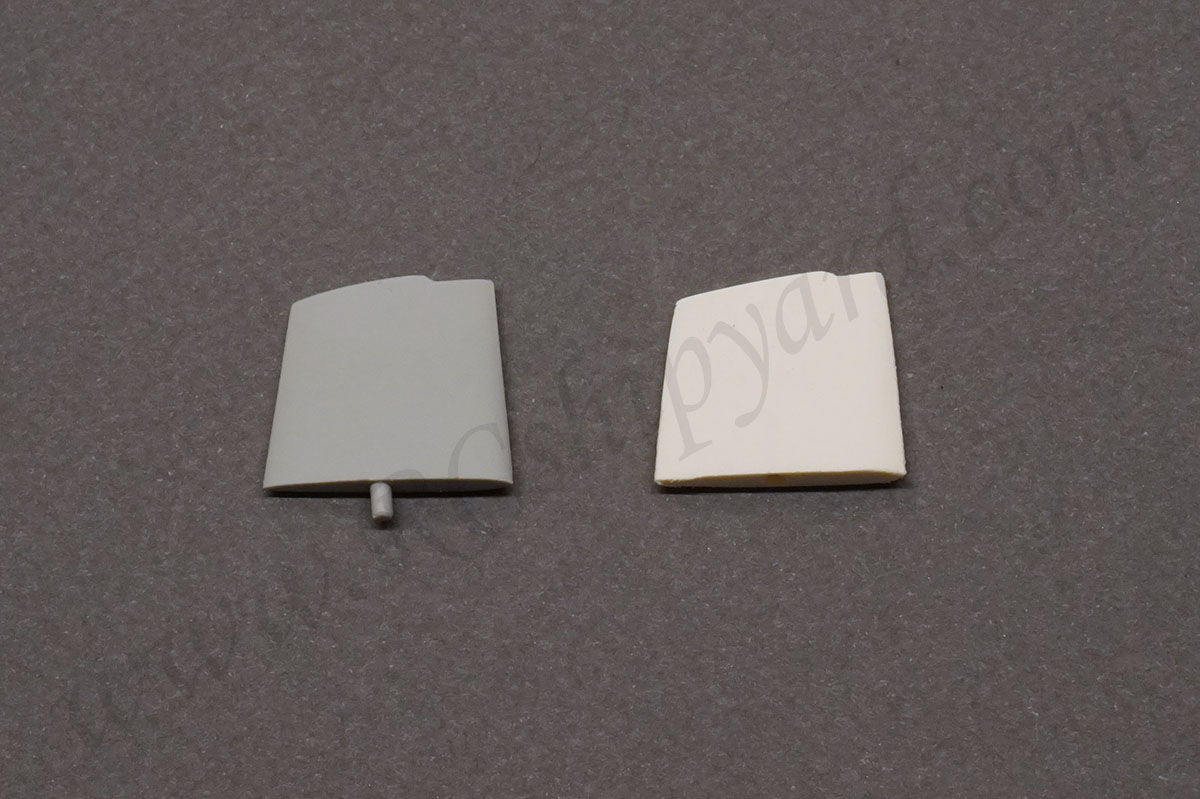

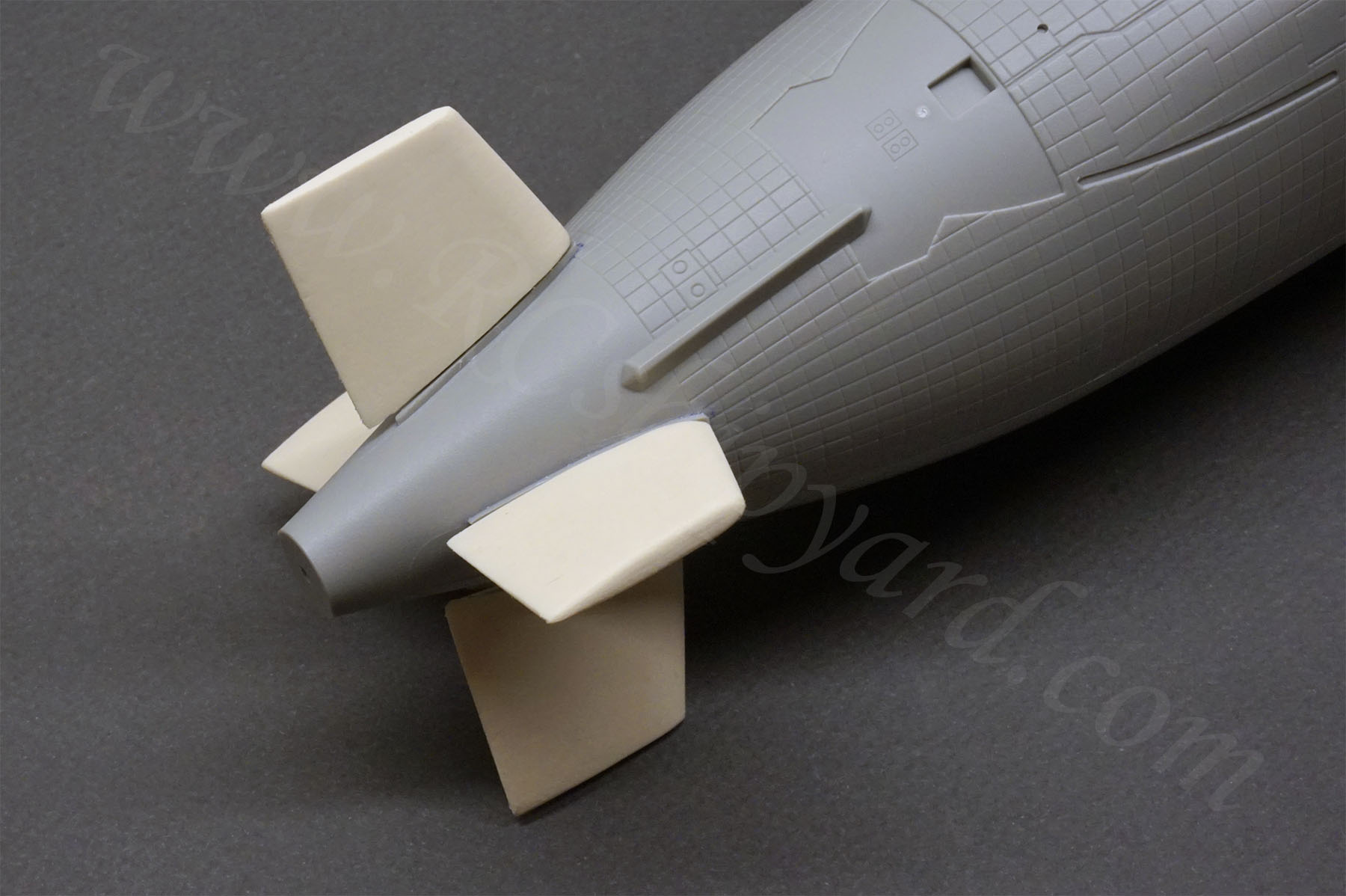

Slightly bigger stern dive planes and rudders allow better model manoeuvrability!

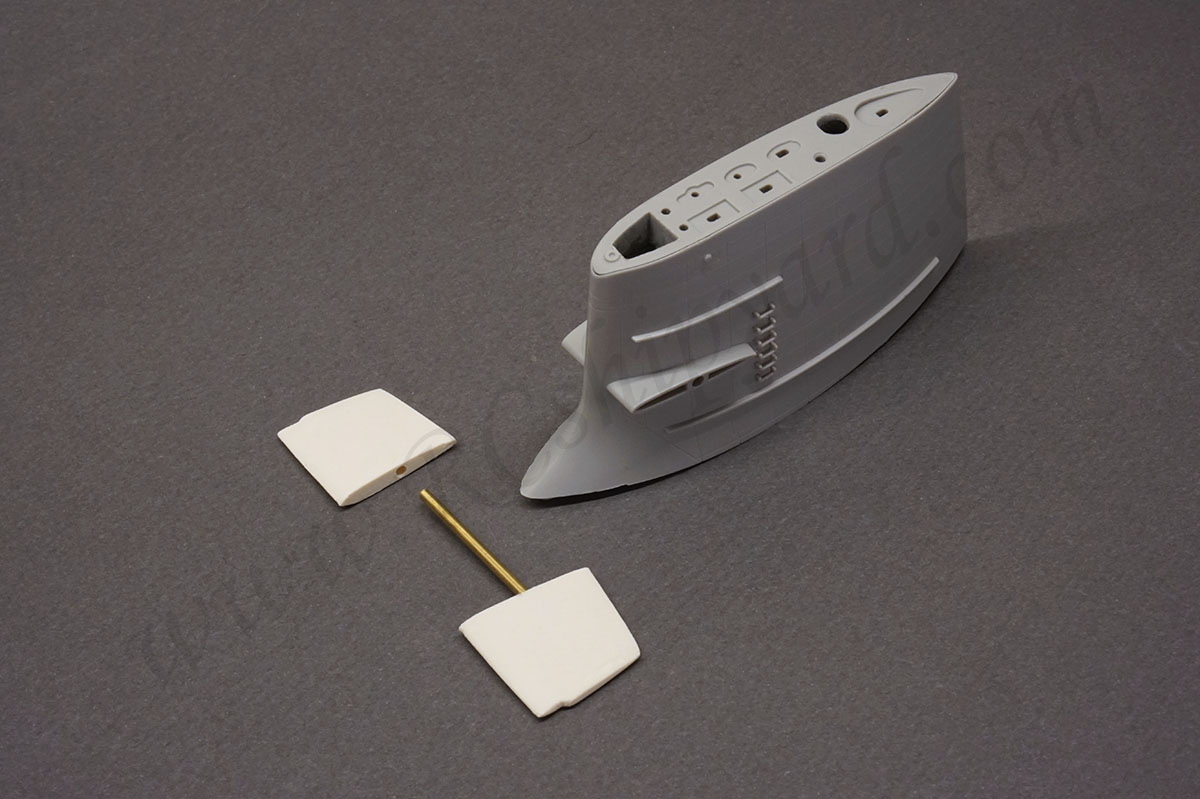

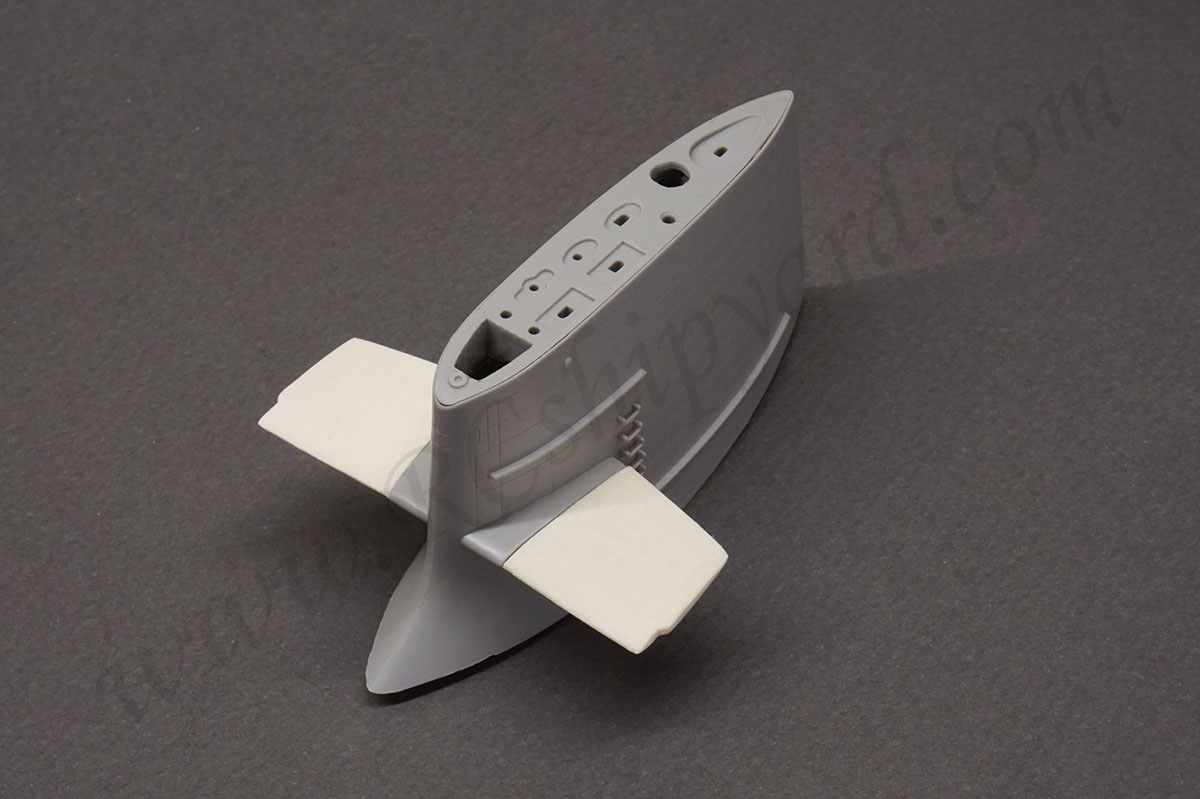

New set of operational fairwater (tower mounted) diving planes:
ATTENTION: This model requires the upper hull to be cut. It’s a difficult task, BUT ONLY if you don’t have the proper tools. If you don’t have a precise handsaw, we highly recommend our cutting set, which includes a very thin hand saw (0.36mm) and a special guiding rail for it. Then the task becomes stress free and very easy. You can use this KIT for your other projects in the future too. Just ask as about the saw and rail before or after the order.
Link to our cutting set (only 19.90 Euro): HERE.
With the sharp saw and our guiding rail for it, the cut line will be almost invisible. Check yourself on the photos below:

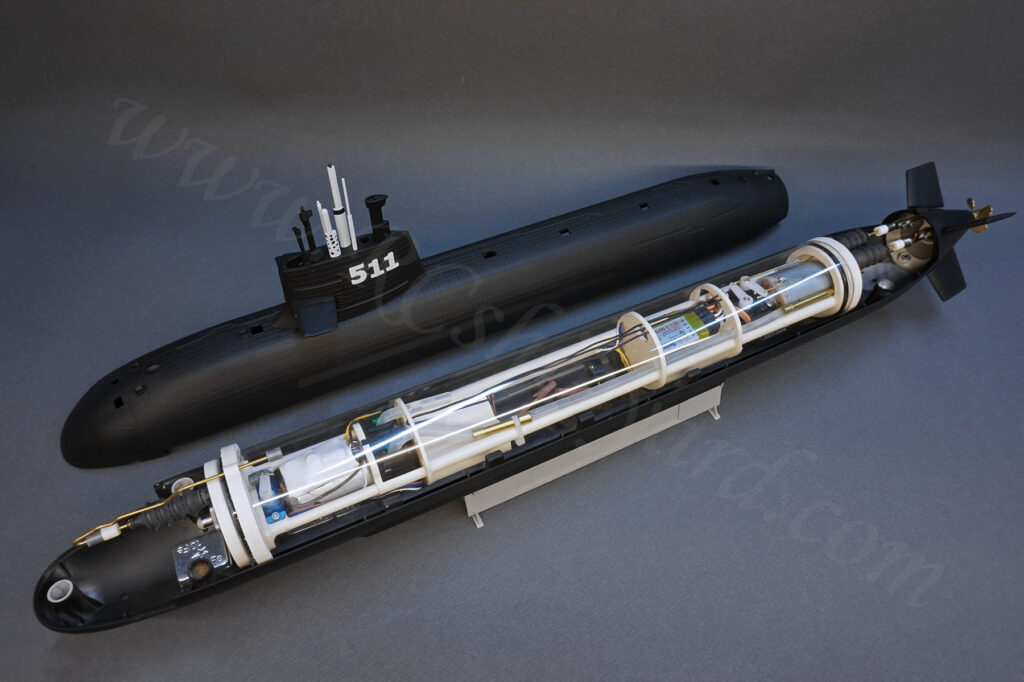

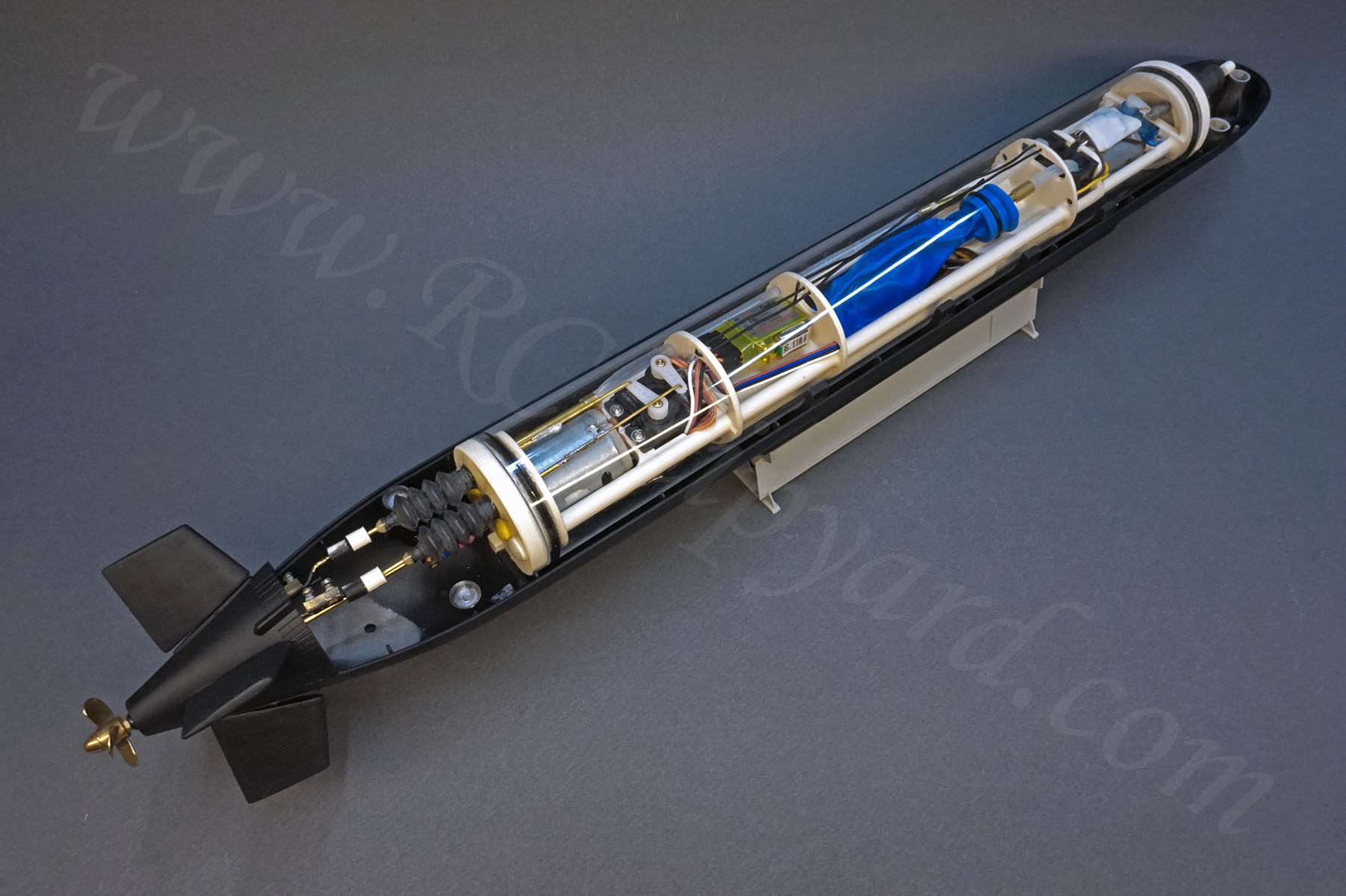

WTC mounted in the Trumpeter Soryu model:
– Still required to make the WTC operational:
- RC receiver and radio transmitter with mixer.
